GENERAL

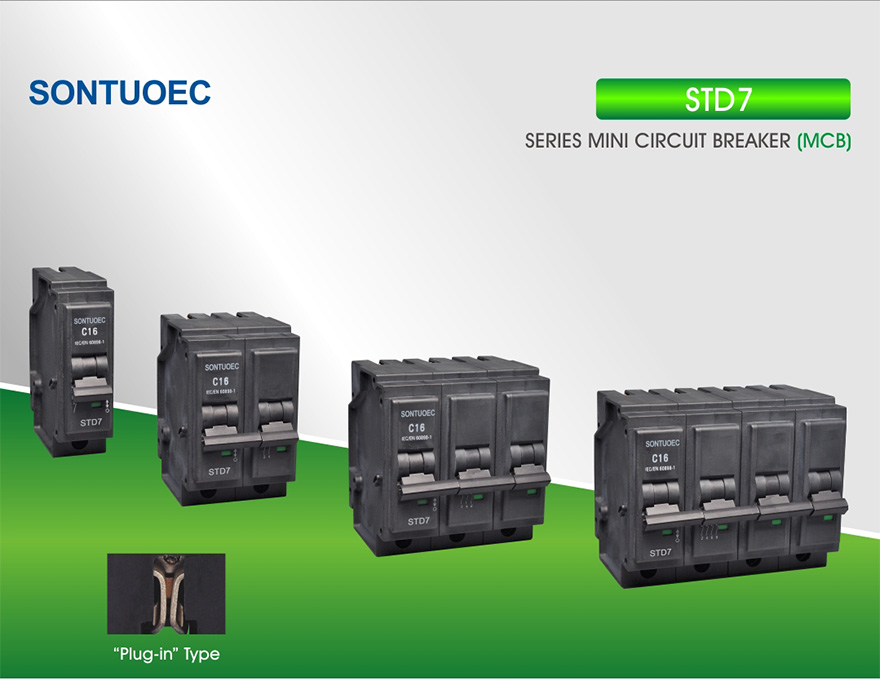

STD7 Series miniature circuit breaker applies to industrial, commerical, lighting and electric machine distribution system with AC120/415V, 50/60Hz, rated working current up to 100A to protect against overload and short circuit. The item is installed into plug-in type mounting base.
SPECIFICATIONS
| Standard | Unit | IEC/EN 60947-2 |
| Number of Poles | P | 1P,2P,3P,4P |
| Rated current | A | 6, 15,20,30,40,50,60 |
| Rated Voltage | V | 120 (1P), 120/240 (2P), 240/415 (3P/4P) |
| Breaking Capacity | A | 5KA (120V); 10KA(240/415V) |
| Rated frequency | Hz | 50/60Hz |
| Electrical Life | Times | 6000 |
| Mechanical Life | Times | 14000 |
| Degree of protection | IP20 | |
| Mounting | Plug-in type |
WIRING DIAGRAM / OVERALL AND MOUNTING DIMENSIONS(MM)
MINI CIRCUIT BREAKER (MCB)
